Q-Series Industrial Solenoids


Q610 Series

The Trombetta Q610-A1V12 / A1V24, offered in both 12V and 24V is a push type solenoid built to withstand high temperature and high vibration environments. The coils are fully encapsulated and able to withstand a variety of environmental conditions. This side-mount, three-wire solenoid uses no spring return and has a maximum stroke of 1". This solenoid provides 15 lbs net pull force and 20 lbs net hold force. The 12V model is rated at 49 “pull-in” amps and 1.0 “hold” amps, while the 24V models is rated at 25.5 “pull-in” amps and 0.48 “hold” amps. Typical applications include mobile and stationary equipment, including lawn and garden equipment, compressors, generators and construction equipment.

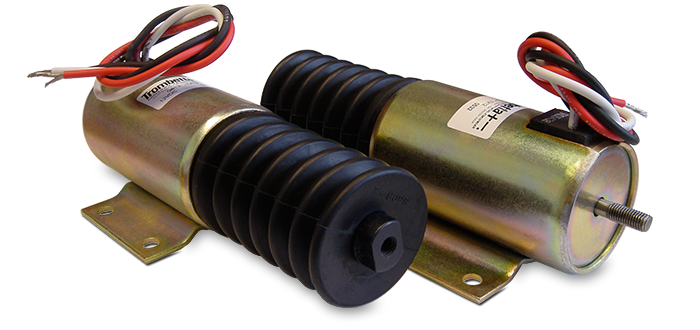

trombetta q-series industrial solenoid

For many applications a spring return is necessary. The Q610-B1V12 / B1V24, also available in 12V and 24V, utilizes a “light” spring return. With this addition the solenoid provides 13 lbs net pull force and 13 lbs net hold force. The 12V model is rated at 49 “pull-in” amps and 1.0 “hold” amps, while the 24V models is rated at 25.5 “pull-in” amps and 0.48 “hold” amps. The Q610-C1V12 / C1V24, available in 12V and 24V, utilizes a “heavy” spring return and provides 12 lbs net pull force and 11 lbs net hold force. The 12V model is rated at 49 “pull-in” amps and 1.0 “hold” amps, while the 24V models is rated at 25.5 “pull-in” amps and 0.48 “hold” amps. MurCal sells all the above variations of this solenoid in our online web store.


Q613 Series

The Trombetta Q613-A1V12 / A1V24, offered in both 12V and 24V is a push type solenoid built to withstand high temperature and high vibration environments. The coils are fully encapsulated and able to withstand a variety of environmental conditions. This side-mount, three-wire solenoid uses no spring return and has a maximum stroke of 1.5”. This solenoid provides 21 lbs net pull force and 40 lbs net hold force. The 12V model is rated at 69.1 “pull-in” amps and 0.88 “hold” amps, while the 24V models is rated at 36.8 “pull-in” amps and 0.48 “hold” amps. Typical applications include mobile and stationary equipment, including lawn and garden equipment, compressors, generators and construction equipment.

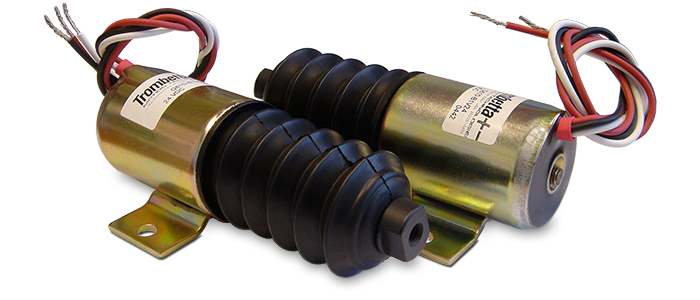

trombetta q-series industrial solenoid

For many applications a spring return is necessary. The Q613-B1V12 / B1V24, also available in 12V and 24V, utilizes a “light” spring return. With this addition the solenoid provides 21 lbs net pull force and 33 lbs net hold force. The 12V model is rated at 69.1 “pull-in” amps and 0.88 “hold” amps, while the 24V models is rated at 36.8 “pull-in” amps and 0.48 “hold” amps. The Q613-C1V12 / C1V24, available in 12V and 24V, utilizes a “heavy” spring return and provides 20 lbs net pull force and 29 lbs net hold force. The 12V model is rated at 69.1 “pull-in” amps and 0.88 “hold” amps, while the 24V models is rated at 36.8 “pull-in” amps and 0.48 “hold” amps. MurCal sells all the above variations of this solenoid in our online web store.



Industrial Solenoid Basics

Industrial Solenoid FAQ's

How to Calculate Watts, Amps and Volts



Literature

Browse through the menu below to download information for the Q-Series Industrial Solenoids in PDF format:


trombetta q-series industrial solenoid literature



Sales Bulletin

P/Q600 Solenoid

( SL1014 / Rev. 1 )




Q514 Specs & Dimensions

( W-Q514-37001 )




Q515 Specs & Dimensions

( W-Q515-38001 )




Q516 Specs & Dimensions

( W-Q516-39001 )




Q517 Specs & Dimensions

( W-Q517-40001 )




Q610-A1, B1, C1V12/24, A1V00
( W-Q610-26001 )



Q610-A5, B5, C5V12/24, A5V00
( W-Q610-26002 )



Q610-A30V12
( W-Q610-26004 )



Q610-A13V12/24
( W-Q610-26005 )



Q610-A14V24
( W-Q610-26006 )



Q610-A34V12
( W-Q610-26007 )






P/Q612 Sales Bulletin

( X262 04/44 1996 )










Q613-A1 Specs & Dimensions

Q613-A1, B1, C1, D1, E1V12/24

( W-Q613-28001 )















Q613-A14 Specs & Dimensions

Q613-A14V12

( W-Q613-28002 )

trombetta q-series industrial solenoid literature



P/Q600 Series Dual Coil

“3-Wire” DC Solenoids

Installation Instructions





Installation Instructions

Q610-K3V12 Fuel Shut-down Kit

Kubota Super Mini Series Engines

( X287 / H10844 Rev. 12/98 )





Installation Instructions

Deutz 912 Series Engines (F3L - 6L)

for Q610-A1V

( X222 / H10562 Rev. 09/00 )
