P-Series Industrial Solenoids



P610 Series

The Trombetta P610-A1V12 / A1V24, offered in both 12V and 24V is a pull type solenoid built to withstand high temperature and high vibration environments. The coils are fully encapsulated and able to withstand a variety of environmental conditions. This side-mount, three-wire solenoid uses no spring return and has a maximum stroke of 1". This solenoid provides 15 lbs net pull force and 23 lbs net hold force. The 12V model is rated at 48 “pull-in” amps and 1.0 “hold” amps, while the 24V models is rated at 25 “pull-in” amps and 0.48 “hold” amps. Typical applications include mobile and stationary equipment, including lawn and garden equipment, compressors, generators and construction equipment.


trombetta P610 industrial solenoid

For many applications a spring return is necessary. The P610-B1V12 / B1V24, also available in 12V and 24V, utilizes a “light” spring return. With this addition the solenoid provides 13 lbs net pull force and 16.5 lbs net hold force. The 12V model is rated at 48 “pull-in” amps and 1.0 “hold” amps, while the 24V models is rated at 25 “pull-in” amps and 0.48 “hold” amps. The P610-C1V12 / C1V24, available in 12V and 24V, utilizes a “heavy” spring return and provides 12.5 lbs net pull force and 13.5 lbs net hold force. The 12V model is rated at 48 “pull-in” amps and 1.0 “hold” amps, while the 24V models is rated at 25 “pull-in” amps and 0.48 “hold” amps. MurCal sells all the above variations of this solenoid in our online web store.


P612 Series

The Trombetta P612-A1V12 is a 12 volt pull-type solenoid built to withstand high temperature and high vibration environments. This side-mount, three-wire solenoid uses no spring return and has a maximum stroke of 1". This model provides 23 lbs net pull force and 43 lbs net hold force, and is rated at 59.3 “pull-in” amps and 0.77 “hold” amps. For connections, the 1/4-28 threaded rod is standard. Like the P610 shown above, typical applications include mobile and stationary equipment, including lawn and garden equipment, compressors, generators and construction equipment.

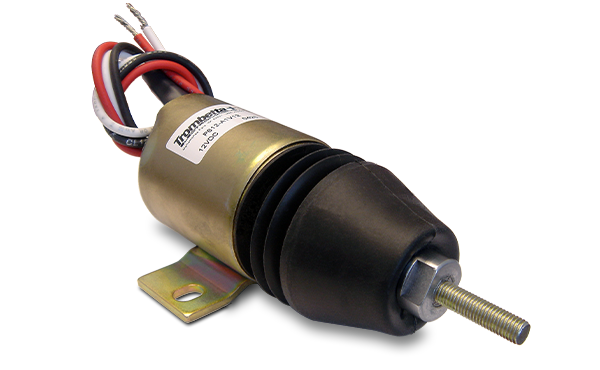

trombetta P612 industrial solenoid

For many applications a spring return is necessary. The P612-B1V12 utilizes a “light” spring return. With this addition the solenoid provides 19 lbs net pull force and 35 lbs net hold force, and is rated at 59.3 “pull-in” amps and 0.77 “hold” amps. The P610-C1V12 utilizes a “heavy” spring return and provides 16 lbs net pull force and 32 lbs net hold force, and is also rated at 59.3 “pull-in” amps and 0.77 “hold” amps. MurCal sells only the 12V models with the above spring options in our online web store.


P613 Series

The Trombetta P613-A1V12 / A1V24, offered in both 12V and 24V is a pull type solenoid built to withstand high temperature and high vibration environments. The coils are fully encapsulated and able to withstand a variety of environmental conditions. This side-mount, three-wire solenoid uses no spring return and has a maximum stroke of 1.5”. This solenoid provides 21 lbs net pull force and 40 lbs net hold force. The 12V model is rated at 69.1 “pull-in” amps and 0.88 “hold” amps, while the 24V models is rated at 36.8 “pull-in” amps and 0.48 “hold” amps. Typical applications include mobile and stationary equipment, including lawn and garden equipment, compressors, generators and construction equipment.

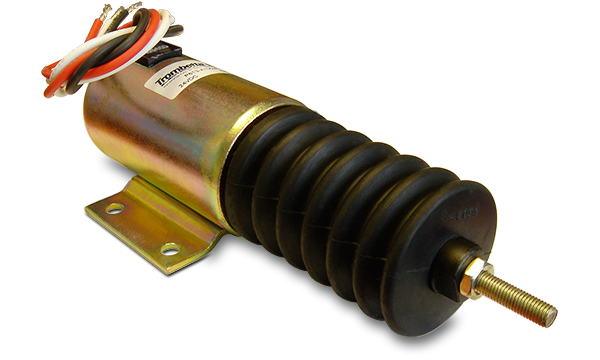

trombetta P613 industrial solenoid

For many applications a spring return is necessary. The P613-B1V12 / B1V24, also available in 12V and 24V, utilizes a “light” spring return. With this addition the solenoid provides 21 lbs net pull force and 33 lbs net hold force. The 12V model is rated at 69.1 “pull-in” amps and 0.88 “hold” amps, while the 24V models is rated at 36.8 “pull-in” amps and 0.48 “hold” amps. The P613-C1V12 / C1V24, available in 12V and 24V, utilizes a “heavy” spring return and provides 20 lbs net pull force and 29 lbs net hold force. The 12V model is rated at 69.1 “pull-in” amps and 0.88 “hold” amps, while the 24V models is rated at 36.8 “pull-in” amps and 0.48 “hold” amps. MurCal sells all the above variations of this solenoid in our online web store.


P500 Series

MurCal sells several unique P500 Series solenoids that are popular as replacement/service parts.

P515-A57

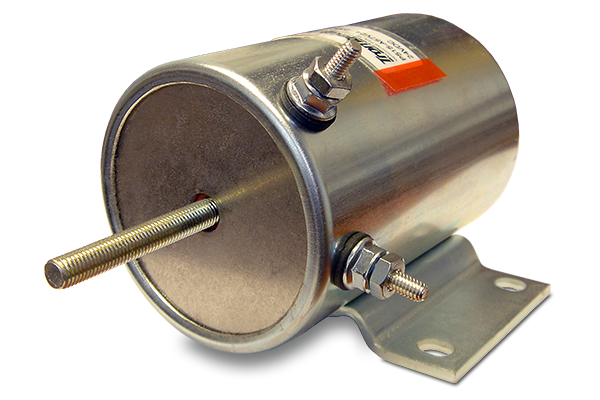

trombetta P515-A57 industrial solenoid

Designed as a pull solenoid, the P515-A57 offers a solution to meet the needs of the switchgear and valve actuation industries, as well as applications involving packaging equipment, braking, clutching, sorting, locking, cutting, punching, holding and clamping. This model is also ideally suited to shutdown your classic Detroit Diesel engine.


P515-A66


trombetta P515-A66 industrial solenoid

This P515-A66 solenoid was designed for a very specific purpose. It is now a service part that CNH America or CASE may specify. Available specs show the external surfaces of the solenoid to be zinc plated - clear chromate dipped. The coil features Class "F" insulation, is oil and dust resistant, with a 4.6 amp max current draw @ 23° C.


P516-A49

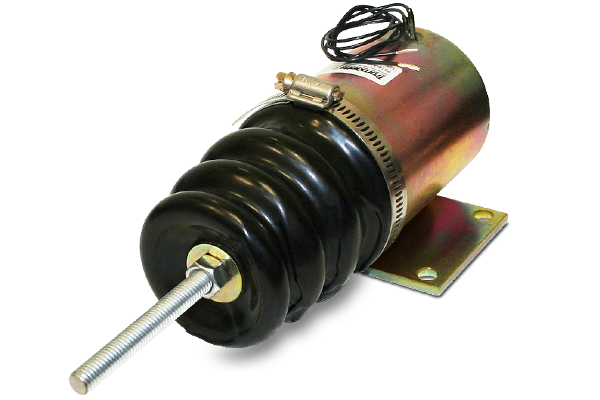

trombetta P516-A49 industrial solenoid

The P516-A49 is a solenoid that can be configured with different coils. The model we stock has the R05161 coil (the F10228 boot kit is installed, as per photo) which was originally designed to be used with 105VDC, typically with 120VAC going into a Trombetta S500-A300 electronic control module. Approx. length is 10.5" when non-energized.




Industrial Solenoid Basics

Industrial Solenoid FAQ's

How to Calculate Watts, Amps and Volts



Literature

Browse through the menu below to download information for the P-Series Industrial Solenoids in PDF format:


trombetta p-series solenoid literature



trombetta p-series solenoid literature



Sales Bulletin

P500 & Q500 Solenoids

(Rev 10/15)





Sales Bulletin

P600 & Q600 Solenoids

(Rev 10/15)





Specifications & Dimensions

P514 Series Solenoids

( W-XP514-33001 )





Specifications & Dimensions

P515 Series Solenoids

( W-XP515-34001 )





Specifications & Dimensions

P516 Series Solenoids

( W-XP516-35001 )





Specifications & Dimensions

P517 Series Solenoids

( W-XP517-36001 )

trombetta p-series solenoid literature

P610-A1V00
(W-P610-16009)

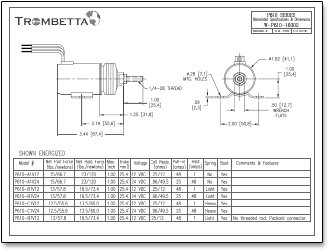

P610-A1V12/24, B7V12
(W-P610-16002)



P610-A29V12, A30, A32, A45, A30V24
(W-P610-16013)



P610-A5V12/24 (A5 thru C5), A18V12
(W-P610-16007)



P610-A51V12/24, A13V12, A50V12
(W-P610-16003)



P610-A54V12, A62
(W-P610-16001)



P610-A68V12, A66V12, C8V12
(W-P610-16006)



P610-A69V12, A67V24
(W-P610-16004)



P610-A71V12
(W-P610-16008)





trombetta p-series solenoid literature





trombetta p-series solenoid literature

P610-B4V12, B6V12
(W-P610-16012)





P610-C2V12
(W-P610-16010)



trombetta p-series solenoid literature





trombetta p-series solenoid literature





trombetta p-series solenoid literature

P610-K Series: Instructions
(X-236  Rev. 10/1996)























P610-K1V12, K13V12, K2V12
(W-P610-16014)



















P610-K9V12
(W-P610-16015)



trombetta p-series solenoid literature

P613 Series: Specs & Dimensions
(X-255  Rev. 09/1996)

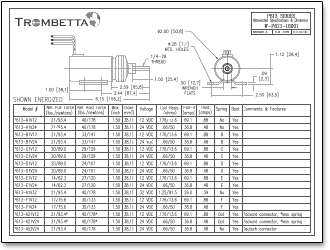

P613-A1V12/24 (A1 thru F1), A21, A52
