Plastic DC Contactor Family

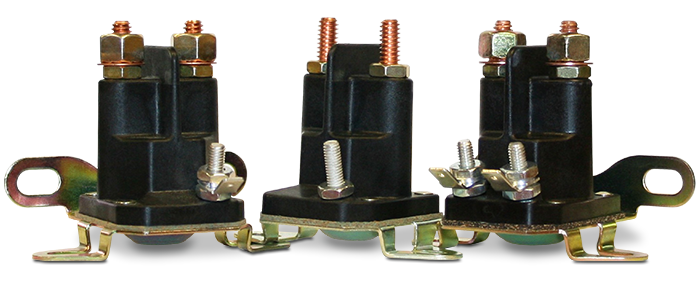

Strong, high temperature-resistant housings surround Trombetta's Plastic DC contactors, resulting in high efficiency. Produced in a variety of sizes and terminal configurations, these contactors are ideal for high volume, cost-sensitive applications. Available with 15% sustained duty, these 12 volt (only) products are ideal for many lawn and garden applications.



trombetta plastic dc contactor

How To Order:

This paragraph is designed to assist you with selecting the correct Plastic DC Contactor for your application by defining each digit in the part number. When you roll over each small box in the image below, a pop-up window will open to explain the feature heading and each of the feature options. For example, a feature heading may be “Sealing” and the relevant feature options may be “No Additional Sealing” and “Resistant to Dust, Liquid”.

<p><u><strong>Coil Connection Configuration</strong></u></p><p>1 = Grounded (1) 1/4 inch Spade</p><p>3 = Grounded (1) 10-32 Stud Standard</p><p>5 = Grounded (1) 10-32 Stud + Spade</p><p>6 = Non-Grounded (2) 1/4 inch Spades</p><p>7 = Non-Grounded (2) 8-32 Studs</p><p>8 = Non-Grounded (2) 10-32 Studs</p><p>9 = Non-Grounded (2) 10-32 Studs + Spades</p> <p><u><strong>High Current Stud</strong></u></p><p>2 = 1/4-20 Stud</p><p>4 = 5/16-24 Standard Plastic</p> <p><u><strong>Coil Voltage</strong></u></p><p>12 = 12 Volt</p><p></p><p>This is standard and the only option available.</p> <p><u><strong>Bracket Type</strong></u></p><p>0 = Customer Specific Bracket</p><p>1 = L Bracket</p><p>2 = Standard Base Bracket</p><p>4 = Oval Hole (1) Bracket w/ Mounting Tab</p><p>5 = Universal Bracket</p> <p><u><strong>Bracket Location</strong></u></p><p>1 = Standard</p><p></p><p>This is standard and the only option available.</p> <p><u><strong>Duty Cycle</strong></u></p><p>2 = 15% Sustained</p><p></p><p>This is standard and the only option available.</p> <p><u><strong>Contact Material</strong></u></p><p>1 = Copper</p><p></p><p>This is standard and the only option available.</p> <p><u><strong>Sealing</strong></u></p><p>0 = No Additional Sealing</p><p>1 = Resistant to Dust, Liquid</p>


One of our best selling models, the 852-1251-210, would be defined as a (8) Plastic DC Contactor, with a coil connection configuration of (5) one grounded 10-32 stud and spade, and a high current stud of (2) 1/4” stud. The coil voltage is (12) 12 volts, with a bracket type of (5) universal bracket, and a bracket location of (1) standard location. The duty cycle is (2) 15% sustained, the contact material is (1) copper, and the sealing is (0) no additional sealing.



DC Contactor Basics

DC Contactor FAQ's



Literature

Browse through the menu below to download information for the Plastic DC Contactor Family in PDF format:


trombetta plastic dc contactor literature



Sales Bulletin

Plastic DC Contactor

(Rev 10/15)

trombetta plastic dc contactor literature



832 Series Contactor

Dimensional Assembly

(Drawing No. E08302)

trombetta plastic dc contactor literature



852 Series Contactor

Dimensional Assembly

(Drawing No. E08657)

trombetta plastic dc contactor literature



892 Series Contactor

Dimensional Assembly

(Drawing No. E08658)

trombetta plastic dc contactor literature


Installation Instructions for Non-Grounded Plastic Contactors:

with Coil Studs & Spades

with Coil Studs

with Spades

trombetta plastic dc contactor literature


Installation Instructions for Grounded Plastic Contactors:

with Coil Stud

with Spade

trombetta plastic dc contactor literature



Plastic DC Part Numbers

How To Order Guide





order now button

Click here to purchase the Plastic DC Contactor Family in the MurCal web store.
