Metal DC Contactor Family


Trombetta's Metal DC contactors are simple and robust workhorse devices. Sized to fit a variety of starter applications and pole configurations, these contactors can be used on anything from golf carts to stationary machinery. Their metal housings make them highly efficient and able to carry 125 amp current, with inrush capabilities over 500 amps, both continuous and intermittent.

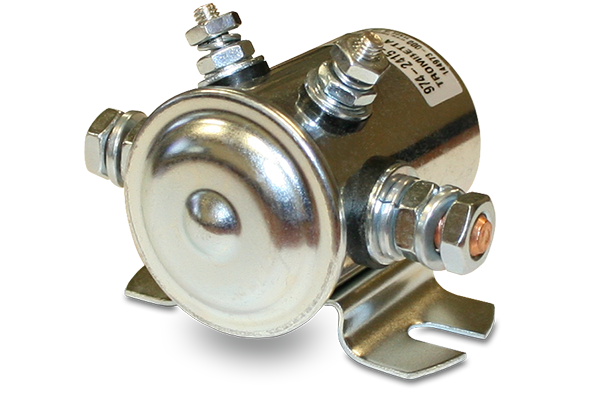

trombetta metal dc contactor

How To Order:

This paragraph is designed to assist you with selecting the correct Metal DC Contactor for your application by defining each digit in the part number. When you roll over each small box in the image below, a pop-up window will open to explain the feature heading and each of the feature options. For example, a feature heading may be “Duty Cycle” and the three relevant feature options may be “100% Continuous” or “20% Sustained” or “60% Sustained”.

<p><u><strong>Coil Connection Configuration</strong></u></p><p>2 = Grounded (1) 8-32 Stud</p><p>3 = Grounded (1) 10-32 Stud Standard</p><p>5 = Grounded (1) 10-32 Stud + Spade</p><p>7 = Non-Grounded (2) 10-32 Studs Standard</p><p>8 = Non-Grounded (2) 10-32 Studs Long</p> <p><u><strong>High Current Stud</strong></u></p><p>0 = 5/16-24 SPDT and 5/16-24 Standard Length Studs</p><p>2 = 1/4-20 Stud</p><p>4 = Standard Metals</p><p>5 = 5/16-24 Med Length (Metals)</p><p>6 = 5/16-24 Long Length (Metals)</p><p>7 = 8mm Standard Length (Metals only)</p> <p><u><strong>Coil Voltage</strong></u></p><p>06 = 6 Volt</p><p>12 = 12 Volt</p><p>15 = 15 Volt</p><p>24 = 24 Volt</p><p>30 = 30 Volt</p><p>36 = 36 Volt</p> <p><u><strong>Bracket Type</strong></u></p><p>1 = Standard Slot</p><p>2 = Closed Holes</p><p>3 = Closed Holes Stretched</p><p>4 = Narrow Slot</p><p>5 = Special</p><p>6 = KDS Special</p> <p><u><strong>Bracket Location</strong></u></p><p>1 = 0.770 in.</p><p>2 = 0.880 in.</p><p>3 = 0.990 in.</p><p>4 = 1.000 in. (Bracket Option 5 Only)</p><p>5 = 1.160 in. (Standard Location)</p> <p><u><strong>Duty Cycle</strong></u></p><p>0 = 100% Continuous</p><p>2 = 20% Sustained</p><p>6 = 60% Sustained</p> <p><u><strong>Contact Material</strong></u></p><p>1 = Copper</p><p>2 = Silver Alloy Contacts</p><p>3 = Future Silver Material Defender</p><p>5 = Alloy Silver Plated Movable</p><p>6 = Alloy Silver Plated Movable & Stationary</p> <p><u><strong>Sealing</strong></u></p><p>0 = No Additional Sealing</p><p>1 = Resistant to Dust, Liquid</p>


One of our best selling models, the 974-1215-010, would be defined as a (9) Metal DC Contactor, with a coil connection configuration of (7) two non-grounded 10-32 studs, and a high current stud of (4) standard metals. The coil voltage is (12) 12 volts, with a bracket type of (1) standard bracket, and a bracket location of (5) 1.160” standard location. The duty cycle is (0) 100% continuous, the contact material is (1) copper, and the sealing is (0) no additional sealing.

For some of our Metal DC Contactors there may also be a final suffix of 09, as in part number 974-1215-010-09. The “09” denotes “assembled with hardware”. This means that the unit ships with washers and nuts on all of the studs, exactly like the contactor shown in the image at the top of the page.



DC Contactor Basics

DC Contactor FAQ's



Literature

Browse through the menu below to download information for the Metal DC Contactor Family in PDF format:


trombetta metal dc contactor literature





trombetta metal dc contactor literature


Sales Bulletins:


Metal DC Contactor

(Rev 10/15)



SPDT Metal DC Contactor

(Rev 10/15)

trombetta metal dc contactor literature



904/934 Series Contactor

Dimensional Assembly

(Drawing No. E08349)

trombetta metal dc contactor literature



930 Series Contactor

Dimensional Assembly

(Drawing No. E08352)

trombetta metal dc contactor literature



936 Series Contactor

Dimensional Assembly

(Drawing No. E08359)

trombetta metal dc contactor literature



970 Series Contactor

Dimensional Assembly

(Drawing No. E08337)

trombetta metal dc contactor literature



974 Series Contactor

Dimensional Assembly

(Drawing No. E08330)

trombetta metal dc contactor literature



976 Series Contactor

Dimensional Assembly

(Drawing No. E08339)

trombetta metal dc contactor literature



986 Series Contactor

Dimensional Assembly

(Drawing No. E08347)

trombetta metal dc contactor literature



Metal DC Contactor

Reversing SPDT Diagram

trombetta metal dc contactor literature



Non-Grounded Metal Contactor

Installation Instructions

trombetta metal dc contactor literature



Grounded Metal Contactor

Installation Instructions

trombetta metal dc contactor literature



Metal DC Part Numbers

How To Order Guide
