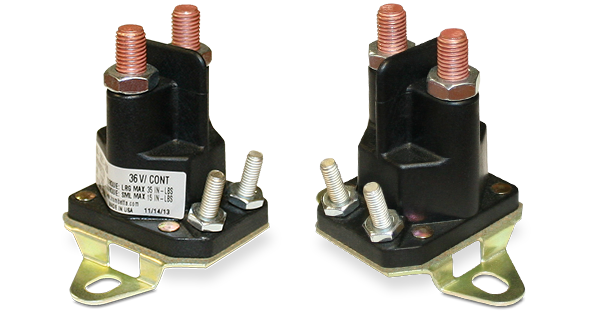

High Performance Plastic DC Contactor Family


This family’s industry-leading 600 amp inrush capability and 5.25 volt pull-in voltage provide an extra margin of weld protection under the worst conditions. Robust 200 amp carry and interrupt capabilities ensure long life. The high temperature core assembly and brass carrier for the moving contacts stand up under punishing, cranking duty.



trombetta high performance plastic dc contactor

How To Order:

This paragraph is designed to assist you with selecting the correct High Performance Plastic DC Contactor for your application by defining each digit in the part number. When you roll over each small box in the image below, a pop-up window will open to explain the feature heading and each of the feature options. For example, a feature heading may be “Contact Material” and the relevant feature options may be “Copper” and “Silver Alloy”.

<p><u><strong>Coil Connection Configuration</strong></u></p><p>1 = Grounded (1) 1/4 inch Spade</p><p>2 = Grounded (1) 8-32 Stud</p><p>3 = Grounded (1) 10-32 Stud Standard</p><p>6 = Non-Grounded (2) 1/4 inch Spades</p><p>7 = Non-Grounded (2) 8-32 Studs</p><p>8 = Non-Grounded (2) 10-32 Studs</p><p>9 = Non-Grounded (2) 8-32 Studs + Spade</p> <p><u><strong>High Current Stud</strong></u></p><p>2 = 1/4-20 Studs</p><p>4 = 5/16-24 Studs</p> <p><u><strong>Coil Voltage</strong></u></p><p>12 = 12 Volt</p><p>14 = 14 Volt</p><p>24 = 24 Volt</p><p>36 = 36 Volt</p> <p><u><strong>Bracket Type</strong></u></p><p>1 = L Bracket</p><p>2 = Standard Base Bracket</p><p>3 = Molded</p><p>4 = Oval Hole (1) Bracket w/ Mounting Tab</p><p>5 = Universal Bracket</p><p>6 = Two Plane Mounting Holes</p> <p><u><strong>Bracket Location</strong></u></p><p>1 = Standard Location</p><p></p><p>This is standard and the only option available.</p> <p><u><strong>Duty Cycle</strong></u></p><p>0 = 100% Continuous</p><p>2 = 15% Sustained</p> <p><u><strong>Contact Material</strong></u></p><p>1 = Copper</p><p>2 = Silver Alloy</p> <p><u><strong>Sealing</strong></u></p><p>0 = No Additional Sealing</p><p>1 = Resistant to Dust, Liquid</p><p>2 = Sealed Design</p>


One of our best selling models, the 784-1221-210, would be defined as a (7) High Performance Plastic DC Contactor, with a coil connection configuration of (8) two non-grounded 10-32 studs, and a high current stud of (4) 5/16-24 studs. The coil voltage is (12) 12 volts, with a bracket type of (2) standard base bracket, and a bracket location of (1) standard location. The duty cycle is (2) 15% sustained, the contact material is (1) copper, and the sealing is (0) no additional sealing.



DC Contactor Basics

DC Contactor FAQ's



Literature

Browse through the menu below to download information for the High Performance Plastic DC Contactor Family in PDF format:


trombetta high performance plastic dc contactor literature



Sales Bulletin

High Performance Plastic DC Contactor

(SL1006Rev1)

trombetta high performance plastic dc contactor literature



712 Series Contactor

Dimensional Assembly

(Drawing No. E08264)

trombetta high performance plastic dc contactor literature

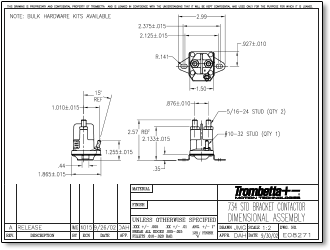

734 Series Contactors

Dimensional Assemblies

     734 F: Std Base Bracket (E08271)

     734 L: "L" Bracket (E08270)

trombetta high performance plastic dc contactor literature



764 Series Contactor

Dimensional Assembly

(Drawing No. E08288)

trombetta high performance plastic dc contactor literature



772 Series Contactor

Dimensional Assembly

(Drawing No. E08275)

trombetta high performance plastic dc contactor literature



784 Series Contactors

Dimensional Assemblies

     784 F: Std Base Bracket (E08263)

     784 L: "L" Bracket (E08262)

trombetta high performance plastic dc contactor literature


Non-Grounded High Performance Plastic Contactor

Installation Instructions:

• Non-Grounded with Coil Studs
• Non-Grounded with Spades
• Non-Grounded with Coil Studs & Spades

trombetta high performance plastic dc contactor literature


Grounded High Performance Plastic Contactor

Installation Instructions:

• Grounded with Coil Stud
• Grounded with Spade

trombetta high performance plastic dc contactor literature



High Performance Plastic DC Part Numbers

How To Order Guide





order now button

Click here to purchase the High Performance Plastic DC Contactor Family in the MurCal web store.
