MCGSP-Gensys Compact Mains GenSet Panel

All-In-One Generator Controller & Mains Paralleling Unit


•  Manual or automatic generator control
•  Automatic start/stop depending on mains failure or external request
•  kW peak shaving or kW base load mains paralleling with PF control
•  Automatic frequency & phase synchronization (differential frequency meter + synchroscope)
•  Engine parameters: oil pressure, water temperature, speed, and hour meter


MCGSP-Gensys Compact Mains GenSet Panel

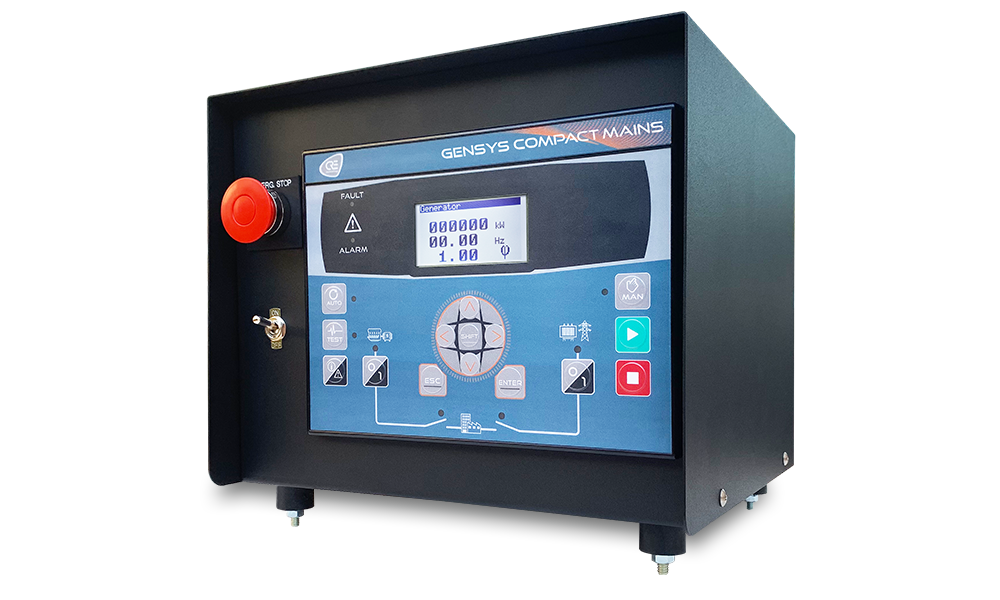

The MCGSP-Gensys Compact Mains GenSet Panel is a complete panel solution that takes the CRE Gensys Compact Mains GenSet Controller to a new level. To complement the controller, we’ve added eight (8) 100mA 600VAC fuses for AC wiring, a convenience terminal block for wiring functions (see terminal block exhibit A), an on/off toggle switch, a push/pull red mushroom emergency stop button, and shock mounts. All components are mounted comfortably inside a custom designed metal enclosure with a matte black/fine texture powder coat finish.

This panel facilitates the CRE Gensys Compact Mains GenSet Controller. The Gensys Mains, a switchboard panel mounted version with display, is dedicated to a large variety of standby diesel or gas gensets, offering isolated speed and AVR outputs along with three (3) isolated communication ports: two (2) for CANbus, and one (1) for Ethernet. The controller offers flexibility and time savings due to its simple wiring, diverse feature set, thoughtful engineering and easy programming.



Features:

•  Complete engine control of diesel, gasoline or gas gensets (preheating, pre-glow, ignition, start/stop)
•  Alternative or consecutive multiple starter management
•  Warmup & cool down at idle or nominal speed
•  Remote start and test mode available ON/OFF load
•  Compatible with all J1939 electronic engines
•  Mains failure detection and No Break changeover with adjustable load transfer time and paralleling time
•  Possibility of Operator mains transfer validation (G59)
•  Mains permanent paralleling in Fix load and PF control. Isochronous & Iso-voltage or Droop mode
•  Frequency and voltage control, compensation for generators with droop governors and/or AVR/DVR
•  Synchronization: Frequency, Phase & Voltage synchronization (Synch display available on screen). Synch Check (ANSI 25) + Phase sequence protection
•  New optimized PID loop with exceptional performance in synchronization, KW and KVAR control
•  Override mode (protections inhibition + dedicated hour meter) following NFE 37-312 certification
•  Non-essential load control on overload
•  Battery boost management
•  Configurable maintenance cycle
•  Two (2) password levels


Literature

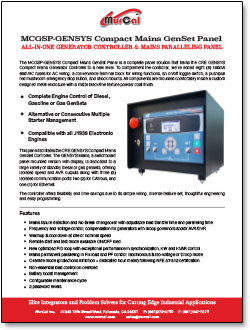

Download information for the MCGSP-Gensys Compact Mains GenSet Panel in PDF format:
