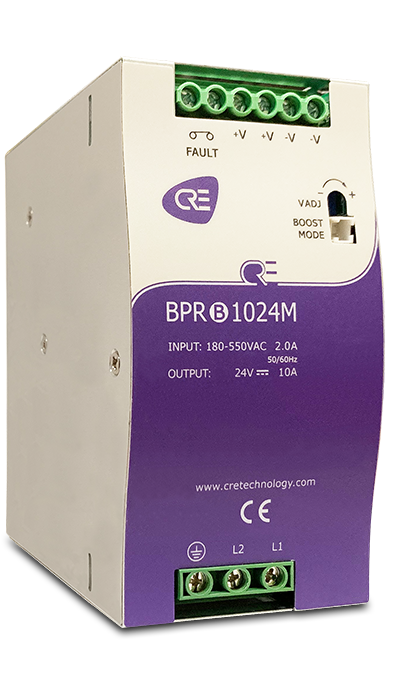

BPRB1024M Battery Charger

Secure and Reliable, with Safety Relay & Boost Mode


CRE’s 24 Volt BPRB1024M battery charger offers a range of input voltages from 180 to 550VAC. This model is rated at 24V of DC voltage with a rated current of 10A and a current range of 0 - 10A. It integrates a permanent short-circuit protection that accepts the electrical starters inrush current without damage. The ergonomically compact design and din rail support allow you to easily integrate it into your plant.

Rated power is 240W with a maximum ripple & noise of 300mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 2.48” (63mm) W x 4.93” (125.2mm) H x 4.47” (113.5mm) D. The design includes a Fail Output Relay, and a Boost Mode Input.

CRE is so confident in the quality and reliability of its battery chargers that we offer you a 3-year warranty for each product purchased. Thanks to a heavy duty case and its free air convection cooling device, CRE battery chargers can operate in extreme temperature situations (between -20°C and +70°C).



BPRB1024M Battery Charger

Features

•  Protections: short circuit, overload, over-voltage, over-temperature
•  Battery charger with fault output relay, 24V 10A
•  Boost mode input feature
•  Single phase
•  Cooling by free air convection
•  Switching frequency architecture
•  100% full load burn-in test
•  Rail DIN mounting: TS-35/7.5 or TS-35/15
•  3 year warranty


Literature

Browse through the menu below to download information for the BPRB1024M Battery Charger in PDF format:


cre battery charger sales bulletin



Sales Bulletin

CRE Battery Chargers

(EN_A2018)

cre BPRB battery charger product specifications



Product Specifications

BPRB Series

(v_042015)

bp range battery charger technical documentation



BP Range Battery Chargers

Technical Documentation

(BPxxxx 9 0020 C EN)

cre off-power generation engine application case study





cre mega power plant application case study



Off-Power Generation Engine Application

Case Study

(EN_A2018)

















Mega Power Plant Application

Case Study

(EN_A2018)





order now button

Click here to purchase the BPRB1024M Battery Charger in the MurCal web store.
