BPRB Boost Mode Range

Secure, Reliable Battery Chargers


The BPRB Boost Mode Range battery chargers offer four models with voltage input from 180 to 550VAC in monophase. These models include 12V of DC voltage with a rated current of 10A, and 24V of DC voltage with rated currents of 5A, 10A and 20A. The BPRB Boost Mode Range features protections for short circuit, overload, over voltage, and over temperature. Boost mode connector and wires are provided.

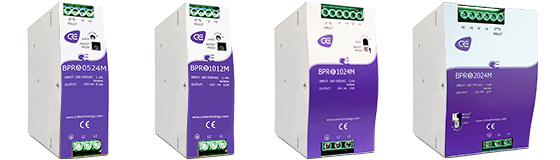

BPRB battery family

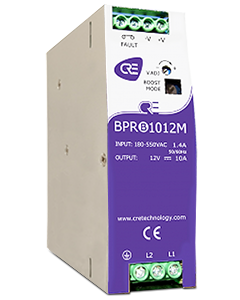

CRE BPRB1012M battery charger

CRE’s 12 Volt BPRB1012M Range Battery Charger offers a range of input voltages in monophase. This model is rated at 12V of DC voltage with a rated current of 10A and a current range of 0-105A; Single-phase voltage input from 180-550VAC (254-780VDC); Rated power 120W; Inrush current (cold start) 50A. Features include protections for short circuit, overload (105~130%), over-voltage (16~18V) and over-temperature (105°C (+/-)5°C (TSW1).

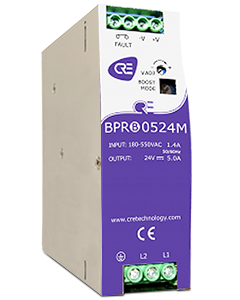

CRE BPRB0524M battery charger

CRE’s 24 Volt BPRB0524M Range Battery Charger offers a range of input voltages in monophase. This model is rated at 24V of DC voltage with a rated current of 5A and a current range of 0-5A; Single-phase voltage input from 180-550VAC (254-780VDC); Rated power 120W; Inrush current (cold start) 50A. Features include protections for short circuit, overload (105~130%), over-voltage (31~37V) and over-temperature (110°C (+/-)5°C (TSW1).

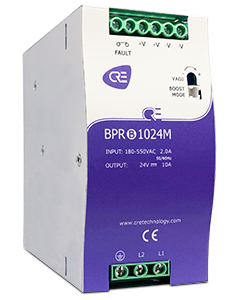

CRE BPRB1024M battery charger

CRE’s 24 Volt BPRB1024M Range Battery Charger offers a range of input voltages in monophase. This model is rated at 24V of DC voltage with a rated current of 10A and a current range of 0-10A; Single-phase voltage input from 180-550VAC (254-780VDC); Rated power 240W; Inrush current (cold start) 50A. Features include protections for short circuit, overload (105~150%), over-voltage (31~38V) and over-temperature (90°C (+/-)5°C (TSW).

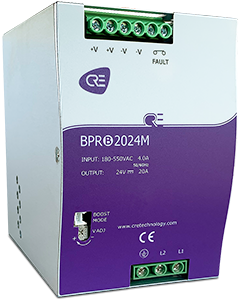

CRE BPRB2024M battery charger

CRE’s 24 Volt BPRB2024M Range Battery Charger offers a range of input voltages in monophase. This model is rated at 24V of DC voltage with a rated current of 20A and a current range of 0-20A; Single-phase voltage input from 180-550VAC (254-780VDC); Rated power 480W; Inrush current (cold start) 50A. Features include protections for short circuit, overload (105~130%), over-voltage (31~38V) and over-temperature (95°C (+/-)5°C (TSW).





BPRB Boost Mode Range Features

•  Voltage input: 180 to 550VAC
•  Protections: Short circuit, overload, overvoltage, and over temperature
•  Boost mode connector and wires are provided
•  Cooling by free air convection
•  Can be installed on DIN rail TS-35/7.5 or TS-35/15
•  Switching frequency architecture
•  Fault relay contact
•  100% full load burn-in test
•  3 years warranty


Literature

Browse through the menu below to download information for the BPRB Range Battery Charger Family:


cre battery charger sales bulletin



Sales Bulletin

CRE Battery Chargers

(EN_A2018)

cre battery charger product specifications



Product Specifications

BPRB Boost Mode Range

(v_042015)

bp range battery charger technical documentation



BP Range Battery Chargers

Technical Documentation

(BPxxxx 9 0020 C EN)
