BPR Compact Range

Tiny, Efficient Battery Chargers


The BPR Compact Range battery chargers are designed to supply constant voltage to the battery with a permanent connection and a maximum of efficiency. Two models are offered with voltage input from 85 to 264VAC in monophase. These models include 12V of DC voltage with a rated current of 5A, and 24V of DC voltage with a rated current of 2.5A. The BPR Compact Range features protections for short circuit, overload, and over voltage.

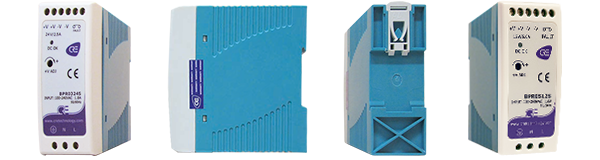

BPR compact battery family

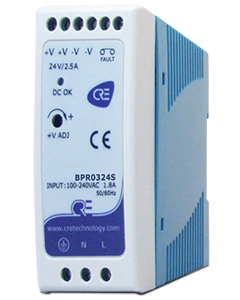

CRE BPR0324S battery charger

CRE’s 24 Volt BPR0324S Range Battery Charger offers a range of input voltages in monophase. This model is rated at 24V of DC voltage with a rated current of 2.5A and a current range of 0-2.5A; Single-phase voltage input from 85-264VAC (120-370VDC); Rated power 60W; Inrush current (cold start) 30A/115VAC and 60A/230VDC. Features include protections for short circuit, overload (105~150%), over-voltage (31.2~36V) and over-temperature.

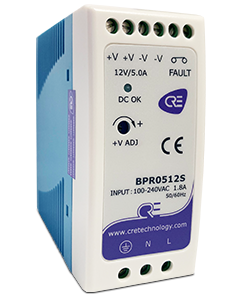

CRE BPR0512S battery charger

CRE’s 12 Volt BPR0512S Range Battery Charger offers a range of input voltages in monophase. This model is rated at 12V of DC voltage with a rated current of 5A and a current range of 0-5A; Single-phase voltage input from 85-264VAC (120-370VDC); Rated power 60W; Inrush current (cold start) 30A/115VAC and 60A/230VDC. Features include protections for short circuit, overload (105~150%), over-voltage (15.6~18V) and over-temperature.





BPR Compact Range Features

•  Voltage input: 85 to 264VAC
•  Protections: Short circuit, overload, and overvoltage
•  Cooling by free air convection
•  Can be installed on DIN rail TS-35/7.5 or TS-35/15
•  LED indicator for power on
•  Fault relay contact
•  100% full load burn-in test
•  No load power consumption
•  Output relay
•  Competitive price
•  3 years warranty


Literature

Browse through the menu below to download information for the BPR Compact Range Battery Charger Family:


cre battery charger sales bulletin



Sales Bulletin

CRE Battery Chargers

(EN_A2018)

cre battery charger product specifications

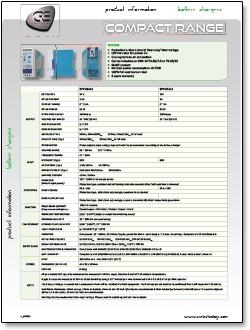

Product Specifications

BPR Compact Range

(v_042015)

bp range battery charger technical documentation



BP Range Battery Chargers

Technical Documentation

(BPxxxx 9 0020 C EN)





order now button

Click here to purchase BPR Compact Range Battery Chargers in the MurCal web store.
