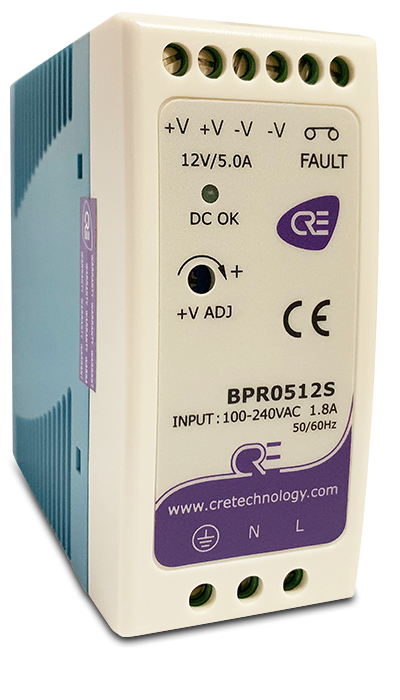

BPR0512S Battery Charger

Tiny, Efficient, Advanced Technology


CRE’s Compact Series BP0512S battery charger is designed to supply constant voltage to the battery with a permanent connection and a maximum of efficiency. This model is rated at 12V of DC voltage with a rated current of 5A and a current range of 0 - 5A.

Rated power is 60W with a maximum ripple & noise of 120mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 1.57” (40mm) W x 3.54” (90mm) H x 3.94” (100mm) D.



BPR0512S Battery Charger

Features

•  Protections: Short circuit/ overload/ over-voltage
•  Cooling by free air convection
•  Can be installed on DIN rail TS-35/7.5 or TS-35/15
•  LED indicator for power on
•  FAULT relay contact
•  No load power consumption
•  100% full load burn-in test
•  3 year warranty
•  Output relay
•  Competitive price


Literature

Browse through the menu below to download information for the BPR0512S Compact Battery Charger in PDF format:


cre battery charger sales bulletin



Sales Bulletin

CRE Battery Chargers

(EN_A2018)

cre battery charger product specifications



Product Specifications

Compact Range

(v_022015)

bp range battery charger technical documentation



BP Range Battery Chargers

Technical Documentation

(BPxxxx 9 0020 C EN)

cre off-power generation engine application case study



Off-Power Generation Engine Application

Case Study

(EN_A2018)





order now button

Click here to purchase the BPR0512S Battery Charger in the MurCal web store.
