BP+305 Range

Economical & Full-Featured Single Phase Battery Chargers


The BP+305 Range Battery Chargers offer five models with voltage input from 90 to 305VAC in monophase. These models include 12V of DC voltage with rated currents of 5A and 10A, and 24V of DC voltage with rated currents of 3A, 5A, and 10A. The BP+305 Range is economical and features protections for short circuit, overload, over voltage, over temperature, and reverse power.

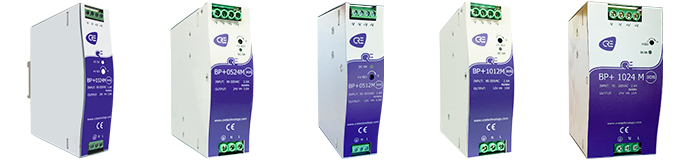

BP+ battery family






CRE BP+0512M-305 battery charger

CRE’s 12 Volt BP+0512M-305 Range Battery Charger offers a range of input voltages in monophase. This model is rated at 12V of DC voltage with a rated current of 5A and a current range of 0-5A; Single-phase voltage input from 90-305VAC (127-370VDC); Rated power 75W; Inrush current (cold start) 20A/115VAC and 35A/230VAC. Features include protections for short circuit, overload, over-voltage and over-temperature.

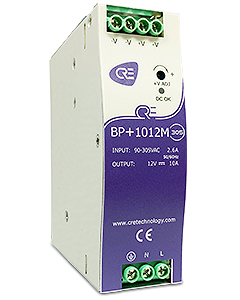

CRE BP+1012M-305 battery charger

CRE’s 12 Volt BP+1012M-305 Range Battery Charger offers a range of input voltages in monophase. This model is rated at 12V of DC voltage with a rated current of 10A and a current range of 0-10A; Single-phase voltage input from 90-305VAC (127-370VDC); Rated power 120W; Inrush current (cold start) 20A/115VAC and 35A/230VAC. Features include protections for short circuit, overload, over-voltage and over-temperature.

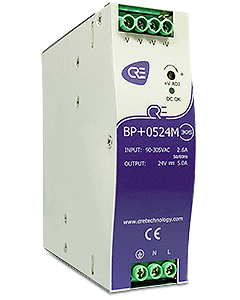

CRE BP+0524M-305 battery charger

CRE’s 24 Volt BP+0524M-305 Range Battery Charger offers a range of input voltages in monophase. This model is rated at 24V of DC voltage with a rated current of 5A and a current range of 0-5A; Single-phase voltage input from 90-305VAC (127-370VDC); Rated power 120W; Inrush current (cold start) 20A/115VAC and 35A/230VAC. Features include protections for short circuit, overload, over-voltage and over-temperature.

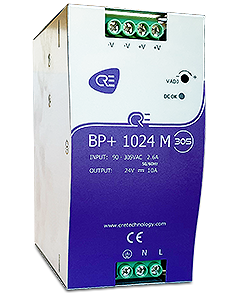

CRE BP+1024M-305 battery charger

CRE’s 24 Volt BP+1024M-305 Range Battery Charger offers a range of input voltages in monophase. This model is rated at 24V of DC voltage with a rated current of 10A and a current range of 0-10A; Single-phase voltage input from 90-305VAC (127-370VDC); Rated power 240W; Inrush current (cold start) 20A/115VAC and 35A/230VAC. Features include protections for short circuit, overload, over-voltage and over-temperature.

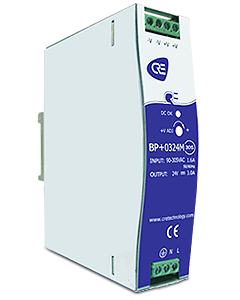

CRE BP+0324M-305 battery charger

CRE’s 24 Volt BP+0324M-305 Range Battery Charger offers a range of input voltages in monophase. This model is rated at 24V of DC voltage with a rated current of 3A and a current range of 0-3A; Single-phase voltage input from 90-305VAC (127-370VDC); Rated power 75W; Inrush current (cold start) 20A/115VAC and 35A/230VAC. Features include protections for short circuit, overload, over-voltage and over-temperature.





BP+305 Range Features

•  Voltage input: 90 to 305VAC
•  Economical
•  Protections: Short circuit, overload, overvoltage, over temperature and reverse power (diode integrated)
•  Cooling by free air convection
•  Can be installed on DIN rail TS-35/7.5 or TS-35/15
•  LED indicator for power on
•  100% full load burn-in test
•  3 years warranty


Literature

Browse through the menu below to download information for the BP+305 Range Battery Charger Family:

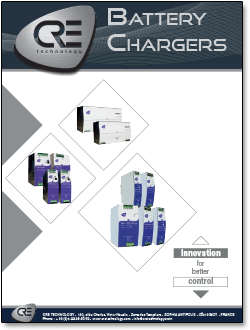

cre battery charger sales bulletin



Sales Bulletin

CRE Battery Chargers

(EN_A2018)

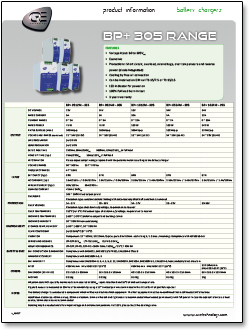

cre battery charger product specifications



Product Specifications

BP+305 Range

(v_A2017)

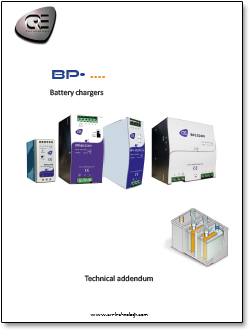

bp range battery charger technical documentation



BP Range Battery Chargers

Technical Documentation

(BPxxxx 9 0020 C EN)
