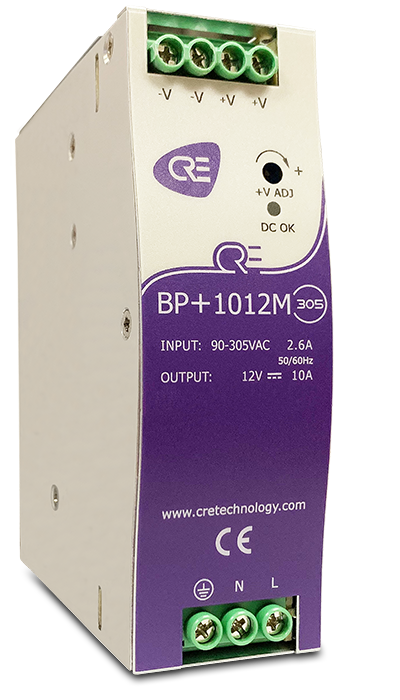

BP+1012M-305 Battery Charger

Diode Integrated


CRE’s 12 Volt BP+ 305 Range battery charger offers a range of input voltages in monophase. This model is rated at 12V of DC voltage with a rated current of 10A and a current range of 0 - 10A.

Rated power is 120W with a maximum ripple & noise of 100mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 1.57” (40mm) W x 4.93” (125.2mm) H x 4.47” (113.5mm) D.



BP+1012M-305 Battery Charger

Features

•  Battery Charger (optimized size) 12VDC - 10A single phase
•  Voltage input: 90 to 305VAC
•  Rail DIN mounting
•  Switching frequency architecture



Protections

•  Short circuit
•  Overload
•  Over-voltage and over-temperature
•  Diode integrated
•  3 year warranty


Literature

Browse through the menu below to download information for the BP+1012M-305 Battery Charger in PDF format:


cre battery charger sales bulletin



Sales Bulletin

CRE Battery Chargers

(EN_A2018)

cre battery charger product specifications



Product Specifications

BP+ 305 Series

(v_A2017)

bp range battery charger technical documentation



BP Range Battery Chargers

Technical Documentation

(BPxxxx 9 0020 C EN)





order now button

Click here to purchase the BP+1012M-305 Battery Charger in the MurCal web store.
