BP Range

Three-Phase Input Voltage Battery Chargers


The BP Range battery chargers offer one model with voltage input from 90 to 264VAC in monophase, and two models with 3-phase voltage input from 340 to 550VAC. All models include 24V of DC voltage with rated currents of 20A and 40A. The BP Range brings fixed switching frequency at 55kHz, and features protections for short circuit, overload, over voltage, and over temperature.

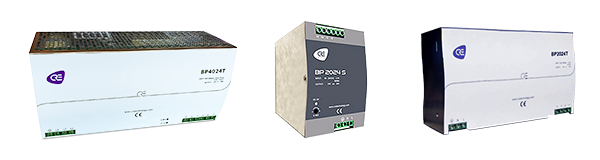

BP battery family

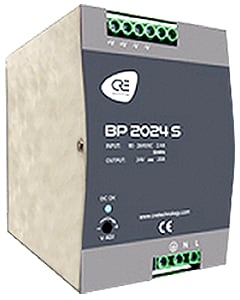

CRE BP2024S battery charger

CRE’s 24 Volt BP2024S Range Battery Charger offers a range of input voltages in monophase. This model is rated at 24V of DC voltage with a rated current of 20A and a current range of 0-20A; Single-phase voltage input from 90-264VAC (127-370VDC); Rated power 480W; Inrush current (cold start) 35A/230VAC. Features include protections for short circuit, overload (105~130%), over-voltage (29~33V) and over-temperature (100°C (+/-)5°C (TSW1).

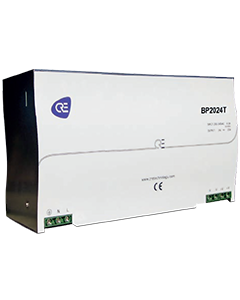

CRE BP2024T battery charger

CRE’s 24 Volt BP2024T Range Battery Charger offers a range of input voltages in three-phase. This model is rated at 24V of DC voltage with a rated current of 20A and a current range of 0-20A; Three-phase voltage input from 340-550VAC (480-780VDC); Rated power 480W; Inrush current (cold start) 50A. Features include protections for short circuit, overload (105~125%), over-voltage (30~36V) and over-temperature (110°C (+/-)5°C (TSW1).


CRE BP4024T battery charger

CRE’s 24 Volt BP4024T Range Battery Charger offers a range of input voltages in three-phase. This model is rated at 24V of DC voltage with a rated current of 40A and a current range of 0-40A; Three-phase voltage input from 340-550VAC (480-780VDC); Rated power 960W; Inrush current (cold start) 50A. Features include protections for short circuit, overload (105~125%), over-voltage (30~36V) and over-temperature (110°C (+/-)5°C (TSW1).





BP Range Features

•  Voltage input: 90 to 550VAC
•  Protections: Short circuit, overload, overvoltage, and over temperature
•  AC input range selectable by switch
•  Cooling by free air convection
•  Can be installed on DIN rail TS-35/7.5 or TS-35/15
•  Monophase or tri-phase
•  Fixed switching frequency at 55kHz
•  LED indicator for power on
•  Fault relay contact
•  100% full load burn-in test
•  3 years warranty


Literature

Browse through the menu below to download information for the BP Range Battery Charger Family:


cre battery charger sales bulletin



Sales Bulletin

CRE Battery Chargers

(EN_A2018)

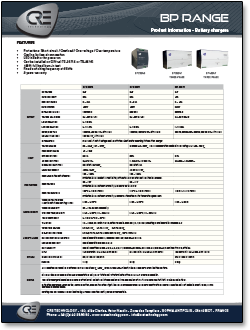

cre battery charger product specifications



Product Specifications

BP Range

(B2019)

bp range battery charger technical documentation



BP Range Battery Chargers

Technical Documentation

(BPxxxx 9 0020 C EN)
