PowerKey PRO Series Keypads



Keypads in the PRO series are the only ones currently on the market that boast keys with removable inserts. The symbol on each PowerKey PRO is laser-etched on a plastic insert that can easily be removed and replaced without needing to take apart the rest of the keypad or cockpit. Learn more about removable inserts here.

The PowerKey PRO SI and SI-FR Series are high-density keypads with small keys (15mm); compact and rational, they guarantee maximum control with minimum size. The PowerKey PRO LI Series offer large keys (24mm), enabling the user to read quickly and apply secure pressure even when using the keypad while wearing gloves.



blink PKP series keypads

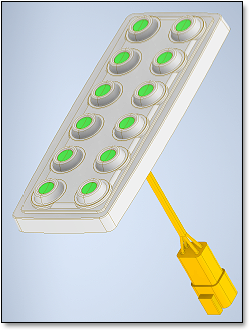

The PKP-SI Compact Keypads are based on CAN protocol. They come equipped with either 12, 8, 6 or 4 keys and feature interchangeable 15 mm inserts. The keypads are water and dust resistant, and can be installed both inside and outside the cockpit. RGB led lights and the ease with which inserts can be switched in and out make it possible for the user to customize each key in a wide range of variations.

NOTE: On all PKP-SI models shown below, the first image you see is the standard “blank” key image. This is what you receive when you purchase a new keypad. Click on the small arrow set located on the right side of each image and drag the arrow to the left to reveal what the keypad looks like with a sample of available inserts. Learn more about Blink’s removable inserts.

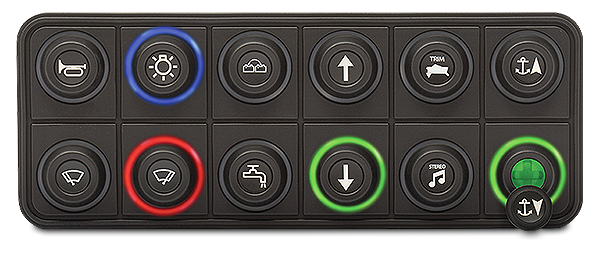

Blink Marine PKP-2600-SI keypad
Blink Marine PKP-2600-SI keypad


PowerKey PRO 2600-SI   12 Key

This model is designed with twelve (12) keys that will accommodate interchangeable 15 mm inserts. This keypad model DOES NOT include the icon inserts. All optional inserts are sold separately.






Blink Marine PKP-2400-SI keypad
Blink Marine PKP-2400-SI keypad


PowerKey PRO 2400-SI   8 Key

This model is designed with eight (8) keys that will accommodate interchangeable 15 mm inserts. This keypad model DOES NOT include the icon inserts. All optional inserts are sold separately.

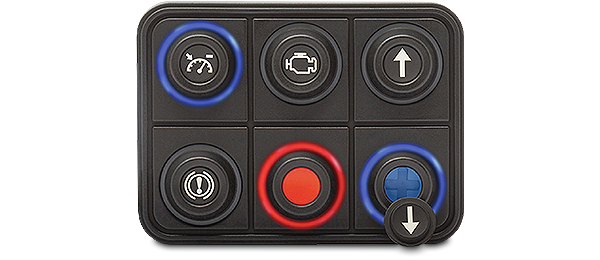

Blink Marine PKP-2300-SI keypad
Blink Marine PKP-2300-SI keypad


PowerKey PRO 2300-SI   6 Key

This model is designed with six (6) keys that will accommodate interchangeable 15 mm inserts. This keypad model DOES NOT include the icon inserts. All optional inserts are sold separately.

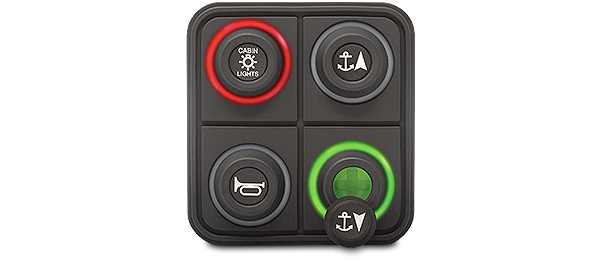

Blink Marine PKP-2200-SI keypad
Blink Marine PKP-2200-SI keypad


PowerKey PRO 2200-SI   4 Key

This model is designed with four (4) keys that will accommodate interchangeable 15 mm inserts. This keypad model DOES NOT include the icon inserts. All optional inserts are sold separately.






Literature




buy now button

Click here to purchase Blink Marine PowerKey PRO SI Series Keypads from the MurCal web store.



The PKP-SI-FR Compact Keypads are based on CAN protocol. They come equipped with either 12 or 6 keys and feature interchangeable 15 mm inserts. The keypads are water and dust resistant, and can be installed both inside and outside the cockpit. RGB led lights and the ease with which inserts can be switched in and out make it possible for the user to customize each key in a wide range of variations.

NOTE: On all PKP-SI-FR models shown below, the first image you see is the standard “blank” key image. This is what you receive when you purchase a new keypad. Click on the small arrow set located on the right side of each image and drag the arrow to the left to reveal what the keypad looks like with a sample of available inserts. Learn more about Blink’s removable inserts.

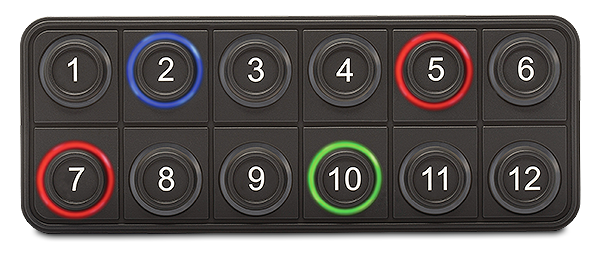

Blink Marine PKP-2600-SI-FR keypad
Blink Marine PKP-2600-SI-FR keypad


PowerKey PRO 2600-SI-FR   12 Key

This model is designed with twelve (12) keys that will accommodate interchangeable 15 mm inserts. This keypad model DOES NOT include the icon inserts. All optional inserts are sold separately.

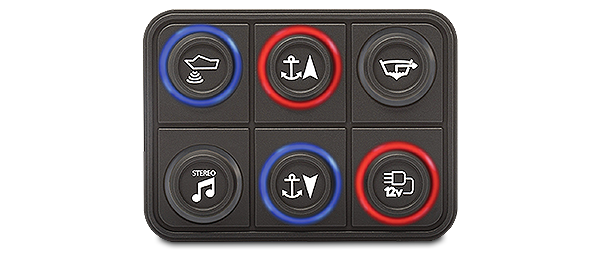

Blink Marine PKP-2300-SI-FR keypad
Blink Marine PKP-2300-SI-FR keypad


PowerKey PRO 2300-SI-FR   6 Key

This model is designed with six (6) keys that will accommodate interchangeable 15 mm inserts. This keypad model DOES NOT include the icon inserts. All optional inserts are sold separately.






Literature




buy now button

Click here to purchase Blink Marine PowerKey PRO SI-FR Series Keypads from the MurCal web store.



The PKP-LI Compact Keypads are based on CAN protocol. They come equipped with 8, 5, or 4 keys and feature interchangeable 24 mm inserts. The keypads are water and dust resistant, and can be installed both inside and outside the cockpit. RGB led lights and the ease with which inserts can be switched in and out make it possible for the user to customize each key in a wide range of variations.

NOTE: On all PKP-LI models shown below, the first image you see is the standard “blank” key image. This is what you receive when you purchase a new keypad. Click on the small arrow set located on the right side of each image and drag the arrow to the left to reveal what the keypad looks like with a sample of available inserts. Learn more about Blink’s removable inserts.

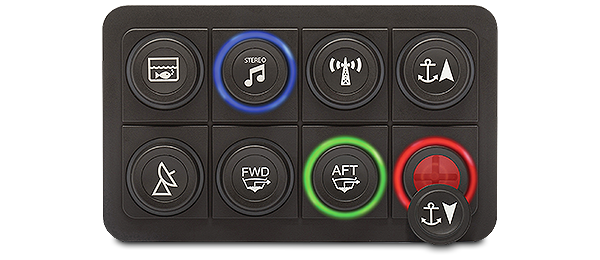

Blink Marine PKP-2400-LI keypad
Blink Marine PKP-2400-LI keypad


PowerKey PRO 2400-LI   8 Key

This model is designed with eight (8) keys that will accommodate interchangeable 24 mm inserts. This keypad model DOES NOT include the icon inserts. All optional inserts are sold separately.

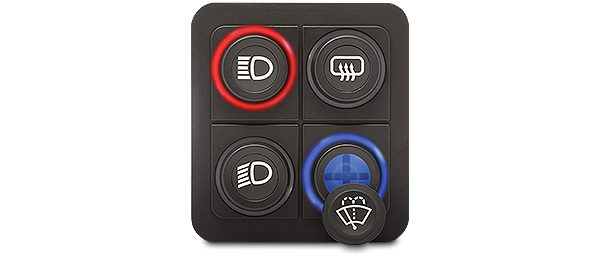

Blink Marine PKP-2200-LI keypad
Blink Marine PKP-2200-LI keypad


PowerKey PRO 2200-LI   4 Key

This model is designed with four (4) keys that will accommodate interchangeable 24 mm inserts. This keypad model DOES NOT include the icon inserts. All optional inserts are sold separately.

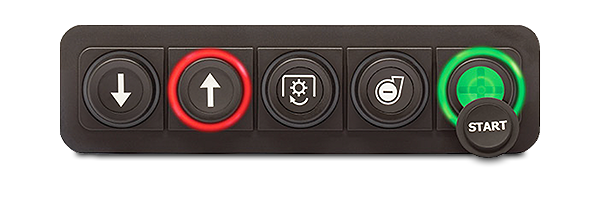

Blink Marine PKP-1500-LI keypad
Blink Marine PKP-1500-LI keypad


PowerKey PRO 1500-LI   5 Key

This model is designed with five (5) keys that will accommodate interchangeable 24 mm inserts. This keypad model DOES NOT include the icon inserts. All optional inserts are sold separately.






Literature




buy now button

Click here to purchase Blink Marine PowerKey PRO LI Series Keypads from the MurCal web store.





Software Features

  •   CAN and RS485 Keypad Addresses - Assign any valid CAN and RS485 address to the keypad. Communicate on either BUS simultaneously.

  •   J1939 Address Claim Transmission - Keypads no longer have to be pre-programmed to a specific address. This enables customers that work in applications in the field without access to a GUI to use any replacement keypad on-hand. The keypad can be configured to automatically announce its address and accept a new address assignment as appropriate.

  •   Event Status Transmission - The keypad can send messages to the BUS indicating a button press or a button release event has occurred. This confirmation allows digital systems to have the same input acknowledgements as that of the latching position of a mechanical switch.

  •   Periodic Status Transmission - The keypad sends a continuous broadcast of messages indicating the press or release status of each button at that instance. The frequency of these messages can be adjusted in a wide range.

  •   Periodic Heartbeat - The keypad sends a continuous broadcast of messages indicating it is functioning correctly. The frequency of these messages can be adjusted in a wide range.

  •   CANopen Communications Protocol (PKP-SI-FR Series) – Fully compliant with Device Profile 401d.



Hardware Features

  •   IP67/IP69K Waterproof Rating - Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.

  •   UV Protected - UVB 400 hours: Keypad is highly resistant to deterioration caused by exposure to sunlight.

  •   Interchangeable inserts - The replacement system for individual inserts makes modifying the keypad layout simpler and more economical. Over one thousand different stock inserts can be viewed on our Removable Inserts page, and it is possible to order customized inserts as well. Contact us for more information regarding customization.

  •   A membrane compensation valve which self compensate the internal pressure within the keypad, alleviating mechanical stresses that can be produced by shifts in external temperatures.

  •   The keypad’s symmetrical design and spacing between keys makes it easier to install multiple keypads alongside one another.

  •   The rubber is molded on the backside in such a way that it acts as a gasket, blocking liquids and preventing them from leaking in through the attachment holes located on the support upon which the keypad is installed.
