PowerKey Series Keypads



Blink PowerKey CAN keypad series combines the styling and compact package size of the PowerKey family with the software features and network capabilities of Blink popular PowerKey Pro family. The PowerKey CAN keypad is the perfect lightweight and flexible solution for any application.

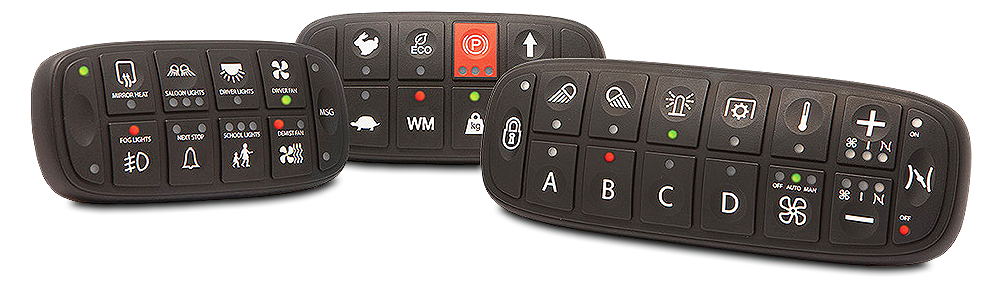

blink PK Series keypads



The PowerKey1000 Series is the flagship model for Blink Marine’s IP67 keypads. The three models boast 10, 8 or 6 keys and are available with CANopen and J1939 protocols. Compact and elegant, the rubber of the PowerKey can be personalized for both the icons and the numbers of led assigned to each individual key. The keypads are also clearly visible in the dark thanks to RGB backlight.



Blink Marine PK 1000 keypad

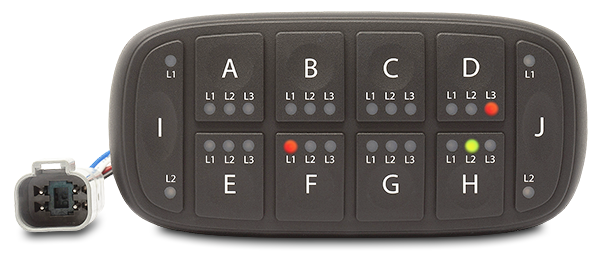

PowerKey 1000   10 Key






Blink Marine PK 1000 keypad

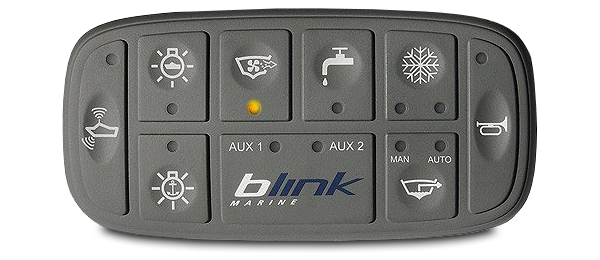

PowerKey 1000   8 Key






Blink Marine PK 1000 keypad

PowerKey 1000   6 Key






Literature




buy now button

Click here to purchase Blink Marine PowerKey 1000 Series Keypads from the MurCal web store.



The PowerKey1400 Series is the flagship model for Blink Marine’s IP67 keypads. The three models boast 14, 12 or 10 keys and are available with CANopen and J1939 protocols. Compact and elegant, the rubber of the PowerKey can be personalized for both the icons and the numbers of led assigned to each individual key. The keypads are also clearly visible in the dark thanks to RGB backlight.



Blink Marine PK 1400 keypad

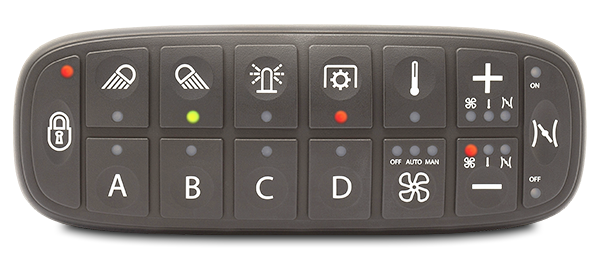

PowerKey 1400   14 Key






Blink Marine PK 1400 keypad

PowerKey 1400   12 Key






Blink Marine PK 1400 keypad

PowerKey 1400   10 Key






Literature




buy now button

Click here to purchase Blink Marine PowerKey 1400 Series Keypads from the MurCal web store.





Software Features

  •   CAN and RS485 Keypad Addresses - Assign any valid CAN (J1939) address to the keypad while also assigning the same or a different RS485 address. Communicate on either BUS simultaneously.

  •   CANopen Communication Protocol - Fully compliant with Device Profile 401d.

  •   J1939 Address Claim Transmission – Keypads no longer have to be pre-programmed to a specific address. This enables customers that work in applications in the field without access to a GUI to use any replacement keypad on-hand. The keypad can be configured to automatically announce its address and accept a new address assignment as appropriate.

  •   Event Status Transmission - The keypad can send messages to the BUS indicating a button press event or a button release event has occurred. This confirmation allows digital systems to have the same input acknowledgements as that of the latching positions of a mechanical switch.

  •   Periodic Status Transmission - The keypad sends a continuous broadcast of messages indicating the press or release status of each button at that instance. The frequency of these messages but can be adjusted in a wide range.

  •   Periodic Heartbeat - The keypad sends a continuous broadcast of messages to indicate it is still functioning correctly. The frequency of these messages can be adjusted in a wide range.



Hardware Features

  •   IP67/IP69K Rating - Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour.

  •   UV Protected - UVB 400 hours: Keypad is highly resistant to deterioration caused by exposure to sunlight.
